Coolant pipe	BT pull stud	BT(S) pull stud	MAZAK pull stud	JIS6339 pull stud
MITSUI pull stud	ISO pull stud	DIN pull stud	CAT pull stud	special

English 　繁體中文　

CAT-ANSI

CAT-BT

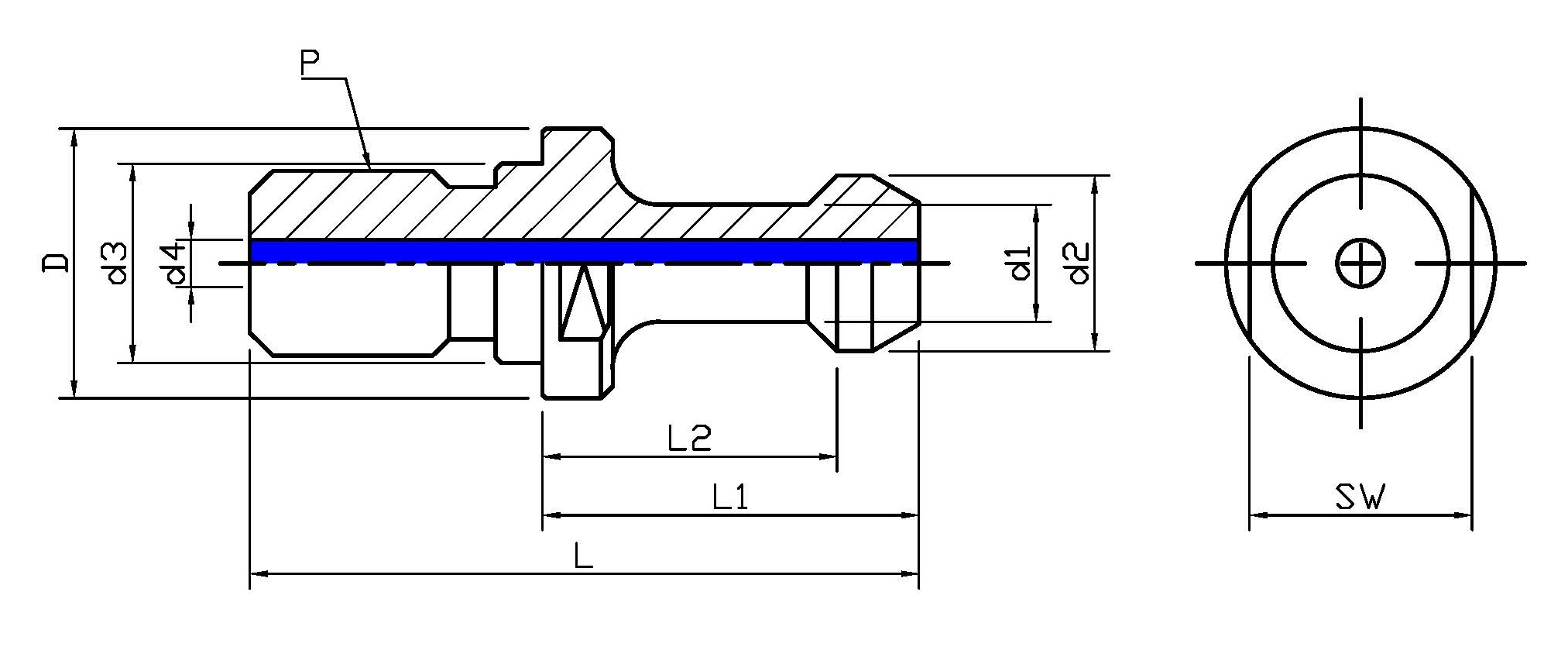

MODEL	D	d1	d2	d3	d4	L	L1	L2	SW	P	Price	QTY
CAT40-45°	23	10	15	-	-	57.2	32.2	25.2	19	5/8"	-	100PCS
CAT40-60°	23	10	15	-	-	57.2	32.2	25.2	19	5/8"	-	100PCS
CAT40-90°	23	10	15	-	-	57.2	32.2	25.2	19	5/8"	-	100PCS
CAT50-45°	38	17	23	-	-	78.6	45	35.2	31.8	1"	-	50PCS
CAT50-60°	38	17	23	-	-	78.6	45	35.2	31.8	1"	-	50PCS
CAT50-90°	38	17	23	-	-	78.6	45	35.2	31.8	1"	-	50PCS
CAT40-45°-M	23	10	15	17	-	57.2	32.2	25.2	19	M16*2.0	-	100PCS
CAT40-60°-M	23	10	15	17	-	57.2	32.2	25.2	19	M16*2.0	-	100PCS
CAT40-90°-M	23	10	15	17	-	57.2	32.2	25.2	19	M16*2.0	-	100PCS
CAT40-45°-M-W	23	10	15	17	4	57	32	25	19	M16*2.0	-	100PCS
CAT40-60°-M-W	23	10	15	17	4	57	32	25	19	M16*2.0	-	100PCS
CAT40-90°-M-W	23	10	15	17	4	57	32	25	19	M16*2.0	-	100PCS

The substandard QTY need plus shipping.
